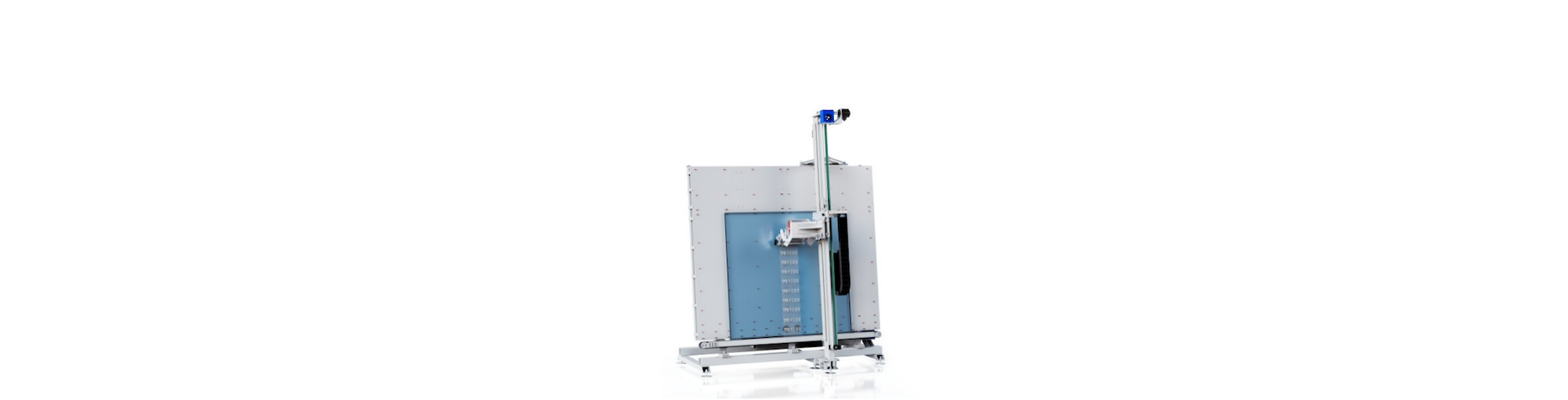

Home >Automatic Film Lamination Mach
| Technical Data | ||||
| Max IG Size | 3500X2700mm（L*W）or customized | |||
| Min IG Size | 600X180mm（L*W） | |||
| Max Film Size | 400X300mm（D*W） | |||
| Machine Specification | 2200X2403X4085mm（L*W*H） | |||
| Power Supply | ≈5.5kW | |||
| Film Lamination Speed | 1-35m/min | |||
| Max IG Thickness | ≤90mm | |||
| Transport Height | 500-550mm | |||
✔ Vertical design enabling compatibility with multiple brand’s IG lines
✔ Auto-detects IG height or accepts manual/MES system input
✔ Self-cutting design eliminates manual peeling
✔ Servo-controlled laminating head movement and glass conveyance and adjustable film edge margins
✔ Pass-through mode allows re-lamination
✔ Suction cup stabilizes IG units during film lamination to prevent glass misalignment
✔ Standard-width film for easy changeovers and low material waste
✔ Simplified operation reduces setup time, easy maintenance
✔ 6-9° tilt of the machine accommodates variable IG thickness requirement, adopt multi-strip vertical film laminating method with adjustable film overlap via touchscreen
